Fuel Lines Installation Part 2


mambosasa

1,317 views

Following on from my last entry, I wasn't too happy with the layout of the fuel hoses. Due to the locations of the fuel filter, in relation to the pressure regulator, it meant that some of the fuel lines ended up crossing each other and although functional, it just looked messy.



So after some rethink, this is what I came up with.



BTW, I ended up adding a little garnish by way of gold clip covers that I bought from deemontweaks.

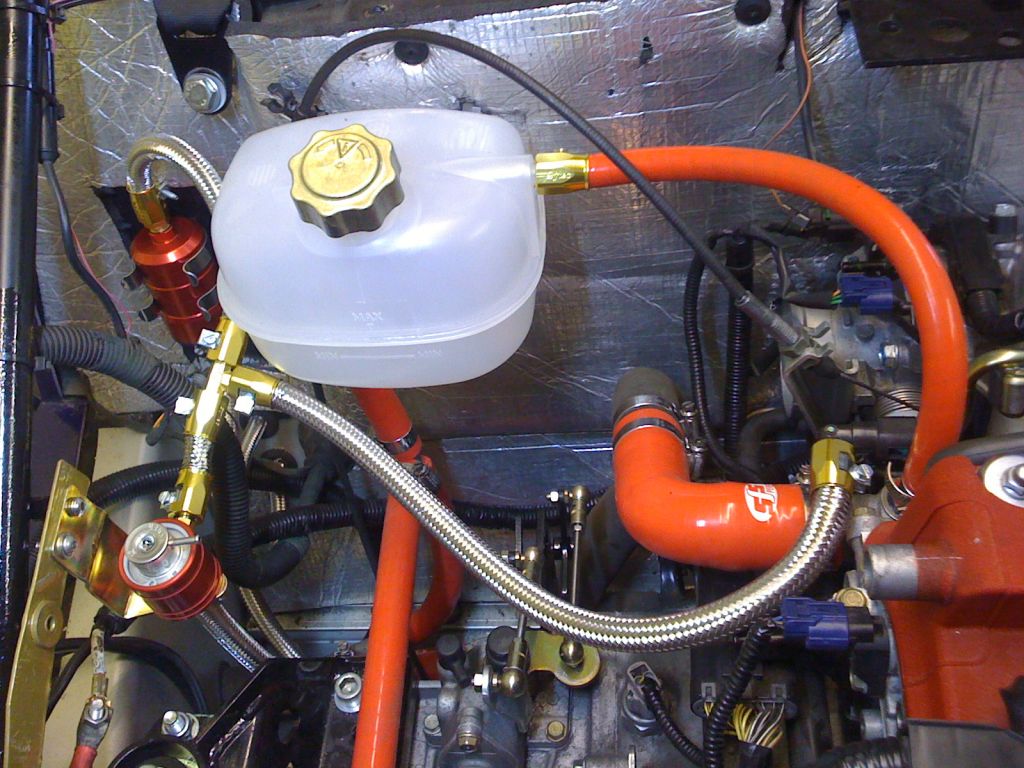

I hope you like the new layout...



Note that I managed to get one on the water reservoir tank :(

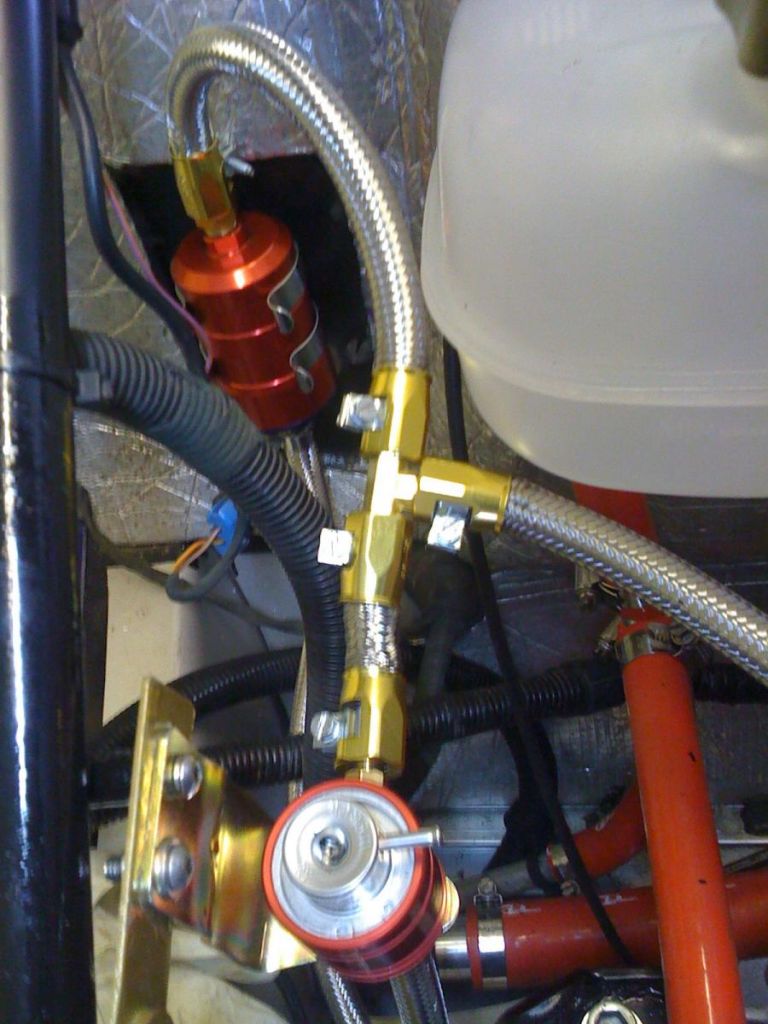

Closer detail...

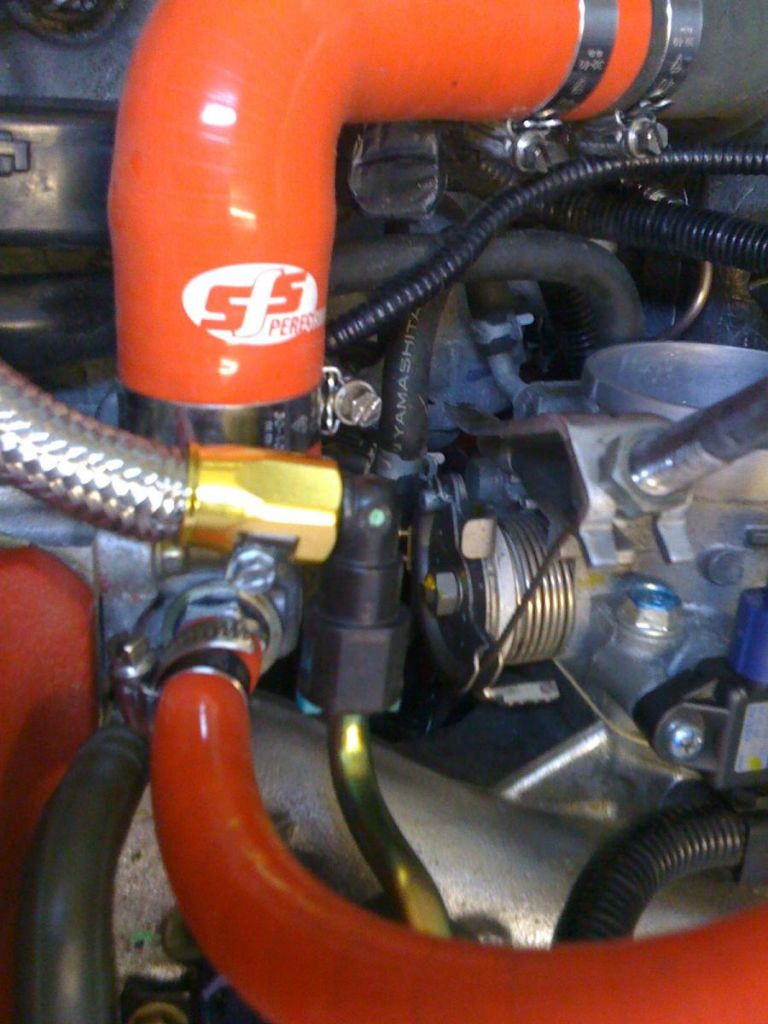

Fuel supply to the engine...






I think I am done with this now and call it job done! :D
