New Diffuser Finally Finished!

Started by jody391, Feb 13 2013 08:24 AM

  • Please log in to reply
17 replies to this topic

#1 jody391

jody391

    Old Timer

  • Members
  • PipPipPipPip
  • 183 posts
1
  • Gender:Male
  • Location:nottingham
  • Car Type:s1 elise

Posted 13 February 2013 - 08:24 AM

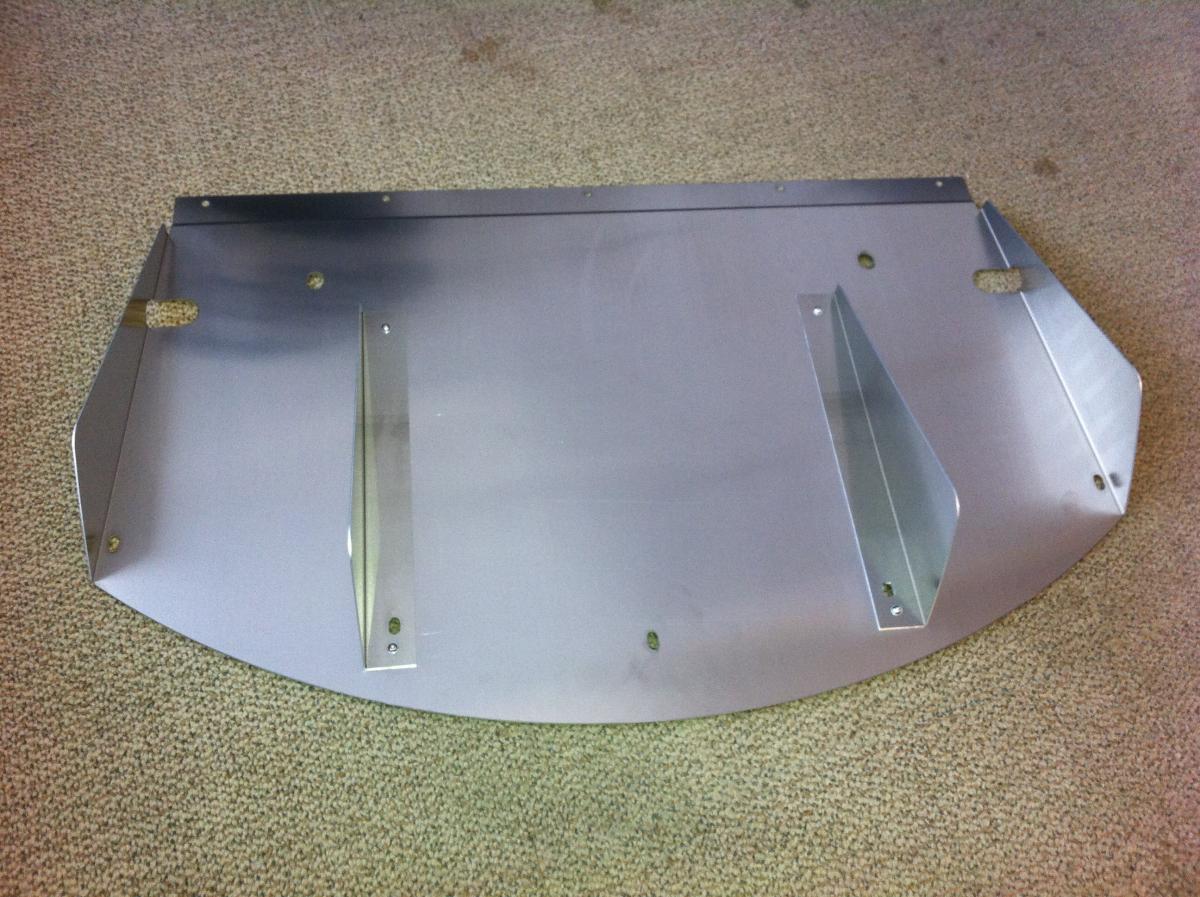

Finally had the chance to pick up my new diffuser.. Re drew the old design and changed a few lengths, then added some strakes.

Lets see if it catches any bumps/kerbs etc!!

Attached Thumbnails

  • image.jpg

Edited by jody391, 13 February 2013 - 08:26 AM.

#2 scatty

scatty

    Addicted Member

  • Members
  • PipPipPipPipPipPipPip
  • 2,051 posts
9
  • Gender:Male
  • Location:nottingham
  • Car Type:kwak green exige s2
Garage View Garage

Posted 13 February 2013 - 08:56 AM

Very nice mate. Get it fitted for Sunday!!!

Never argue with an idiot, they'll bring you down to their level and then batter you with experience!!!!!

#3 russelld

russelld

    Web Junkie

  • Contributing Member
  • PipPipPipPipPipPip
  • 756 posts
3
  • Gender:Male
  • Location:Radcliffe on Trent
  • Car Type:S2sport190 Porka968
Garage View Garage

Posted 13 February 2013 - 10:53 AM

It would look good powder coated black !

#4 stockhome

stockhome

    Addicted Member

  • Members
  • PipPipPipPipPipPipPip
  • 1,557 posts
8
  • Gender:Male
  • Location:Sutton Coldfield
  • Car Type:Elise Sport 135
Garage View Garage

Posted 13 February 2013 - 01:07 PM

Nice work

#5 jody391

jody391

    Old Timer

  • Members
  • PipPipPipPip
  • 183 posts
1
  • Gender:Male
  • Location:nottingham
  • Car Type:s1 elise

Posted 13 February 2013 - 02:00 PM

Cheers guys been meaning to sort one for a while,
I will try to get it on for sunday Scatty.

Just dropped it in for Black anodising!

#6 jonnyfox

jonnyfox

    Web Junkie

  • Contributing Member
  • PipPipPipPipPipPip
  • 713 posts
7
  • Gender:Male
  • Location:Sutton Coldfield
  • Car Type:Exige S2
Garage View Garage

Posted 13 February 2013 - 06:55 PM

Very cool.

#7 John FISH Curtis

John FISH Curtis

    Web Junkie

  • Members
  • PipPipPipPipPipPip
  • 807 posts
8
  • Gender:Male
  • Location:Nottinghamshire
  • Car Type:1998 S1
Garage View Garage

Posted 13 February 2013 - 09:16 PM

Good work, although perhaps a few more rivets required for the two centre vanes?

Call me "Fish"

Hand Crafted, one of a kind quirky jewellery, accessories, gifts & goodies, most with a vintage or retro feel....Belle and Olive

#8 jody391

jody391

    Old Timer

  • Members
  • PipPipPipPip
  • 183 posts
1
  • Gender:Male
  • Location:nottingham
  • Car Type:s1 elise

Posted 13 February 2013 - 09:37 PM

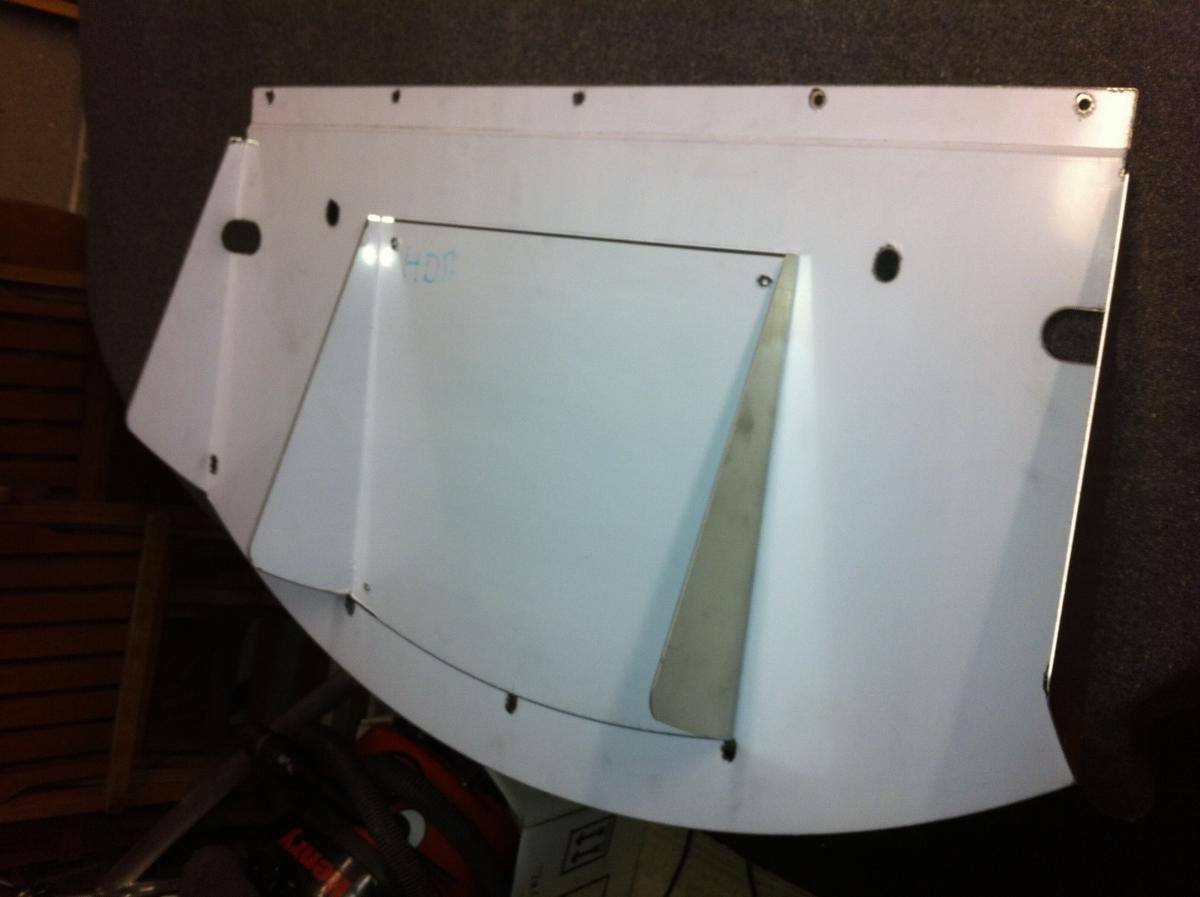

Yeah it now has 4 each side Fish, thought the same too.

The original design had the extra strakes as part of a one piece. But soon decided to do some adjustments!

I'm getting it Black anodised and the place I took it to (Scot) knew what the part was from.. After alittle discussion turns out he anodises Yvo's (Elise shops) parts apparently.

Attached Thumbnails

  • image.jpg

#9 scatty

scatty

    Addicted Member

  • Members
  • PipPipPipPipPipPipPip
  • 2,051 posts
9
  • Gender:Male
  • Location:nottingham
  • Car Type:kwak green exige s2
Garage View Garage

Posted 13 February 2013 - 09:52 PM

Yep, I was thinking exactly the same..... ;-)

Never argue with an idiot, they'll bring you down to their level and then batter you with experience!!!!!

#10 DeanB

DeanB

    Addicted Member

  • Members
  • PipPipPipPipPipPipPip
  • 1,436 posts
22
  • Gender:Male
  • Location:Notts
  • Car Type:Elise

Posted 13 February 2013 - 10:01 PM

View Postscatty, on 13 February 2013 - 09:52 PM, said:

Yep, I was thinking exactly the same..... ;-)

Me too.

#11 John FISH Curtis

John FISH Curtis

    Web Junkie

  • Members
  • PipPipPipPipPipPip
  • 807 posts
8
  • Gender:Male
  • Location:Nottinghamshire
  • Car Type:1998 S1
Garage View Garage

Posted 13 February 2013 - 10:19 PM

View Postjody391, on 13 February 2013 - 09:37 PM, said:

I'm getting it Black anodised and the place I took it to (Scot) knew what the part was from.. After alittle discussion turns out he anodises Yvo's (Elise shops) parts apparently.


Keep in touch with this guy..... might come in hand for a suspension clean up!!!!

Call me "Fish"

Hand Crafted, one of a kind quirky jewellery, accessories, gifts & goodies, most with a vintage or retro feel....Belle and Olive

#12 jody391

jody391

    Old Timer

  • Members
  • PipPipPipPip
  • 183 posts
1
  • Gender:Male
  • Location:nottingham
  • Car Type:s1 elise

Posted 13 February 2013 - 10:46 PM

Well looking at Kurts sat in his footwell 2 Sundays in a row I thought I might bolt them on instead of rivets!

The guy is sound.

That had crossed my mind too Fish great minds and all that! The finish in the parts was impressive!

They do chemical blacking too ( that's just for steel Scatty! ) :)


#13 scatty

scatty

    Addicted Member

  • Members
  • PipPipPipPipPipPipPip
  • 2,051 posts
9
  • Gender:Male
  • Location:nottingham
  • Car Type:kwak green exige s2
Garage View Garage

Posted 13 February 2013 - 10:53 PM

View Postjody391, on 13 February 2013 - 10:46 PM, said:

They do chemical blacking too ( that's just for steel Scatty! ) :)

He he SHAMONE!!!!!!

Never argue with an idiot, they'll bring you down to their level and then batter you with experience!!!!!

#14 jody391

jody391

    Old Timer

  • Members
  • PipPipPipPip
  • 183 posts
1
  • Gender:Male
  • Location:nottingham
  • Car Type:s1 elise

Posted 15 February 2013 - 12:46 PM

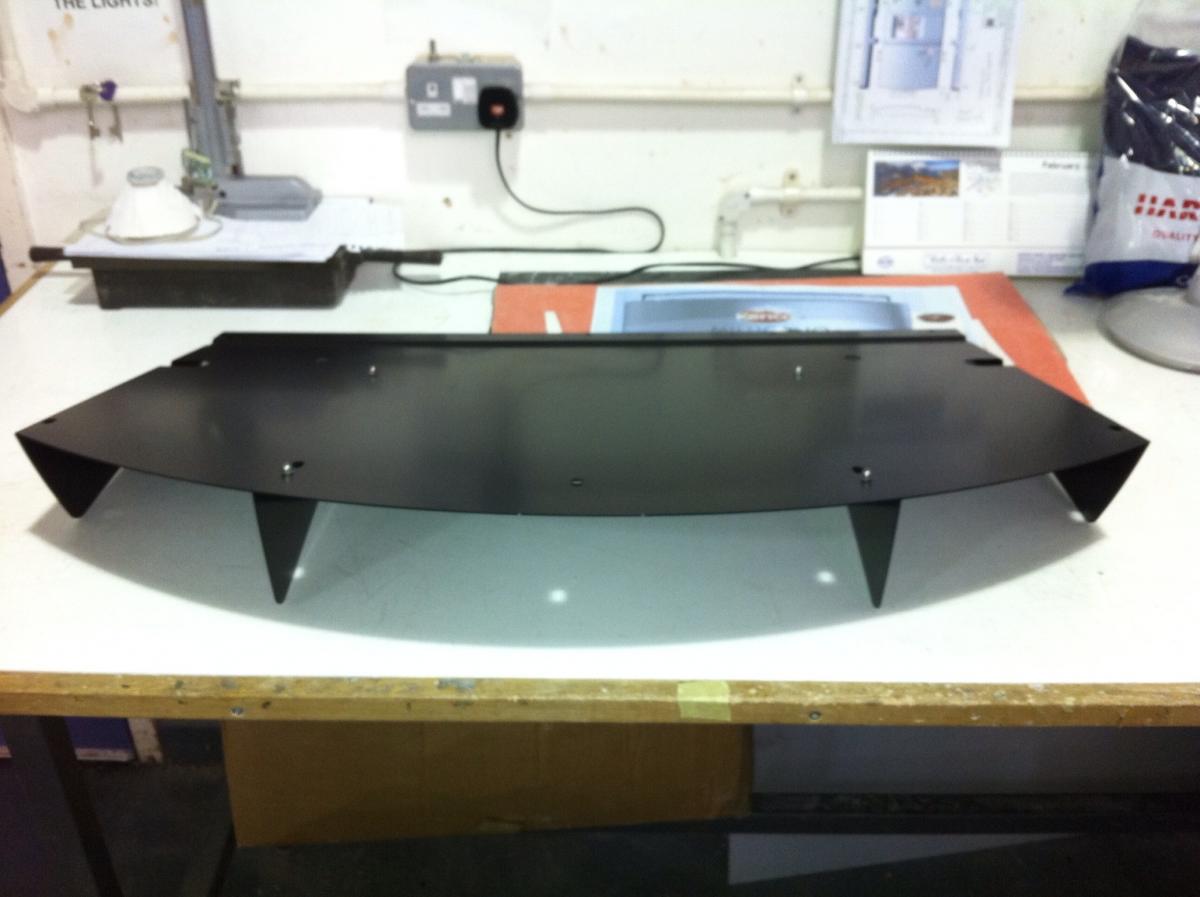

Now it's finished! :)

Attached Thumbnails

  • image.jpg

#15 DeanB

DeanB

    Addicted Member

  • Members
  • PipPipPipPipPipPipPip
  • 1,436 posts
22
  • Gender:Male
  • Location:Notts
  • Car Type:Elise

Posted 15 February 2013 - 01:11 PM

That looks ace
